Product Name:SMTJET LED UV ROLL TO ROLL 3304 3306 PRINTER

Product Details:
Model:
UV 3304/3306
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 3000.00-35000.00 /Set
Shipping Terms:
1
Shippment Port:
Shanghai/Ningbo
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets per Month
Delivery Time:
Within 20 working days
Packaging:
Packing by Plywood Case. Package Size: 5.45 * 1.13 * 1.76m G.W.: 1166kg

Detailed Product Description:

LED UVIP 3304/3306 High Resolution UV Printing Machine.

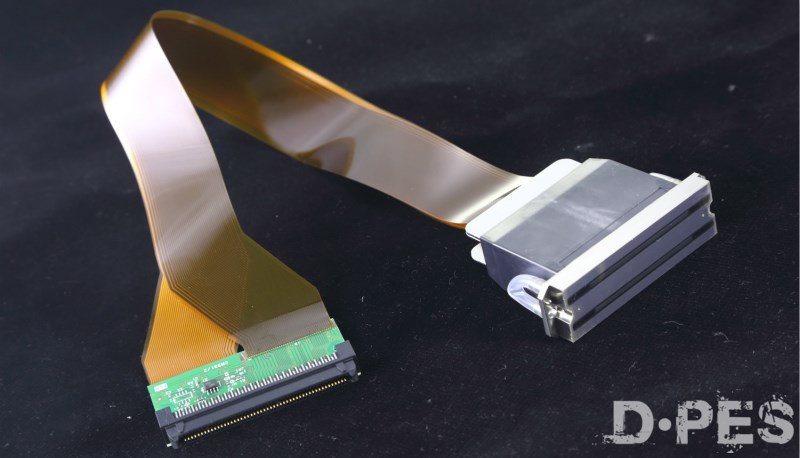

Japan RICOH GEN5 Printhead

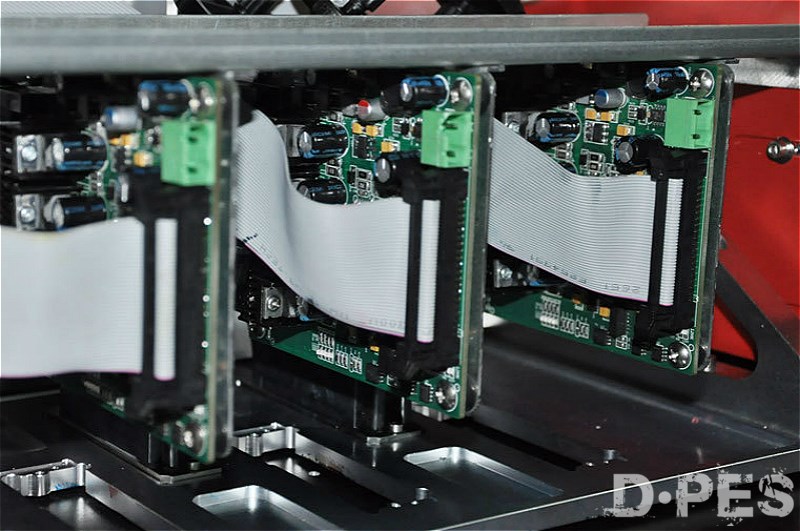

Head Panel

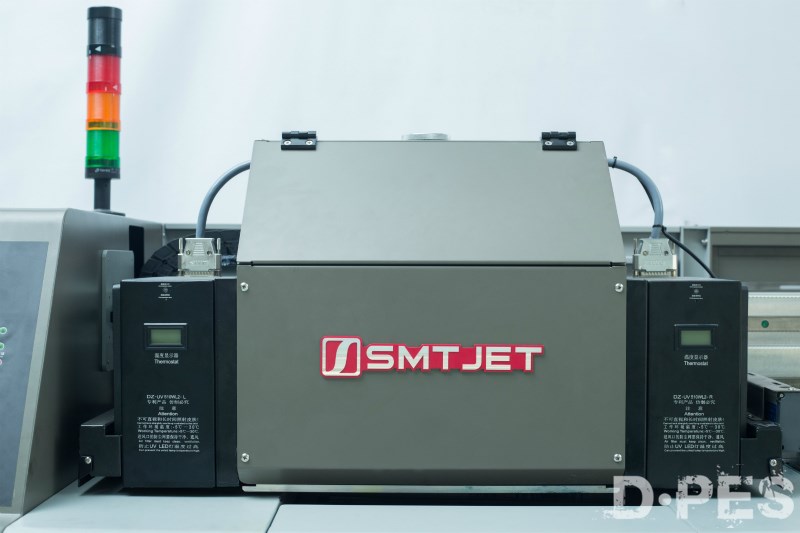

Japan NICHIA LED UV lamp

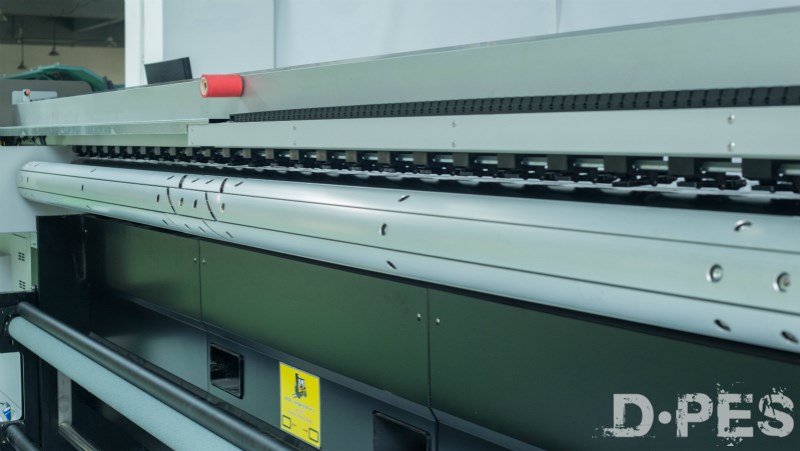

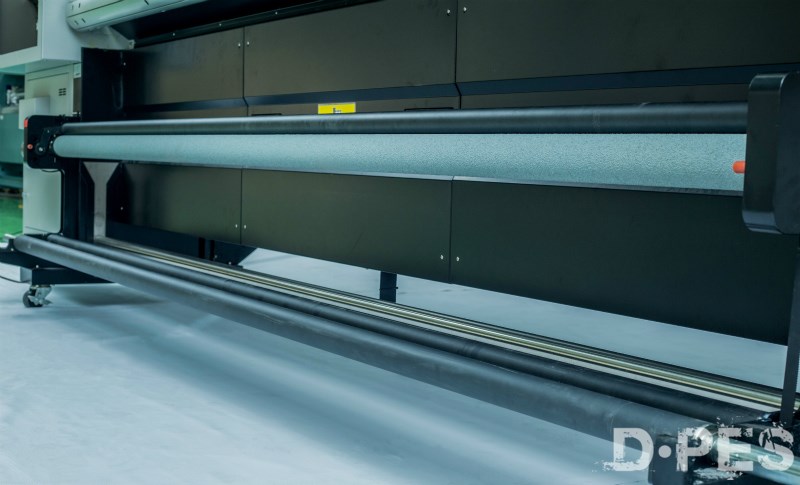

Media feeding&take up system






Light Box

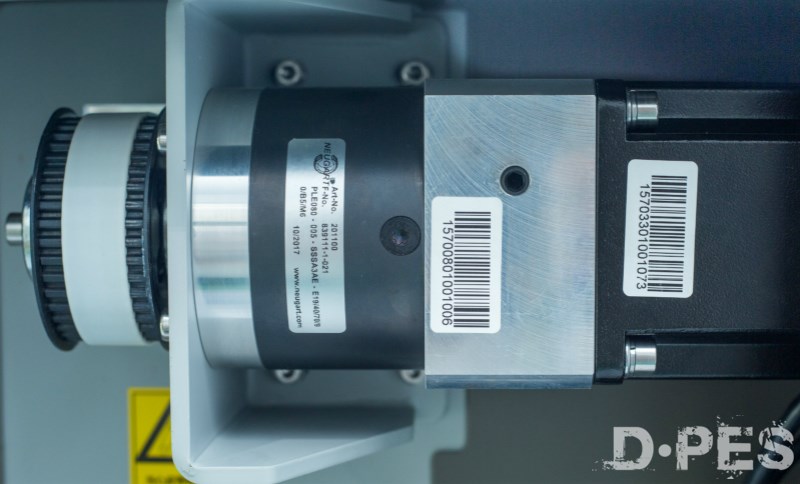

German Reducer

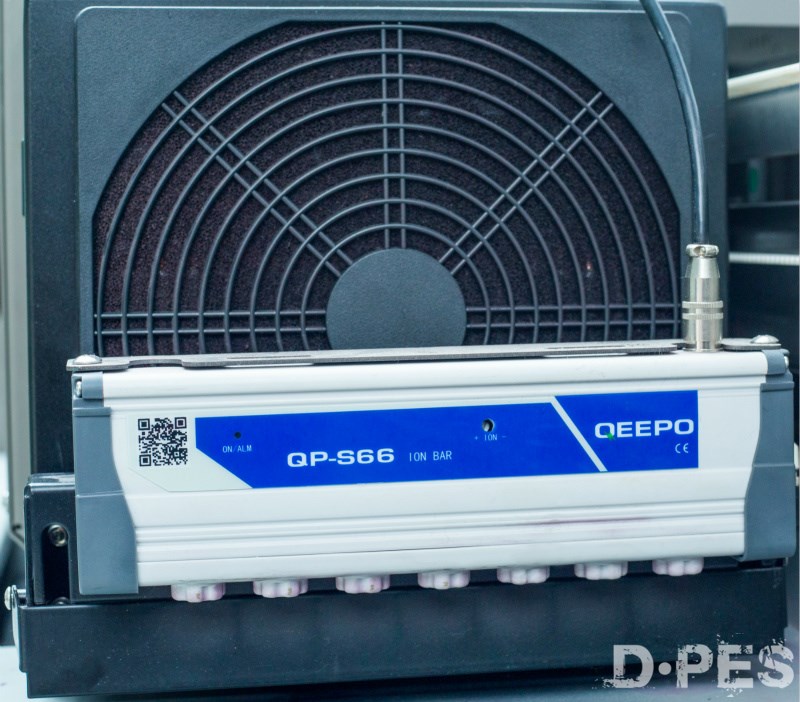

Static Eliminator

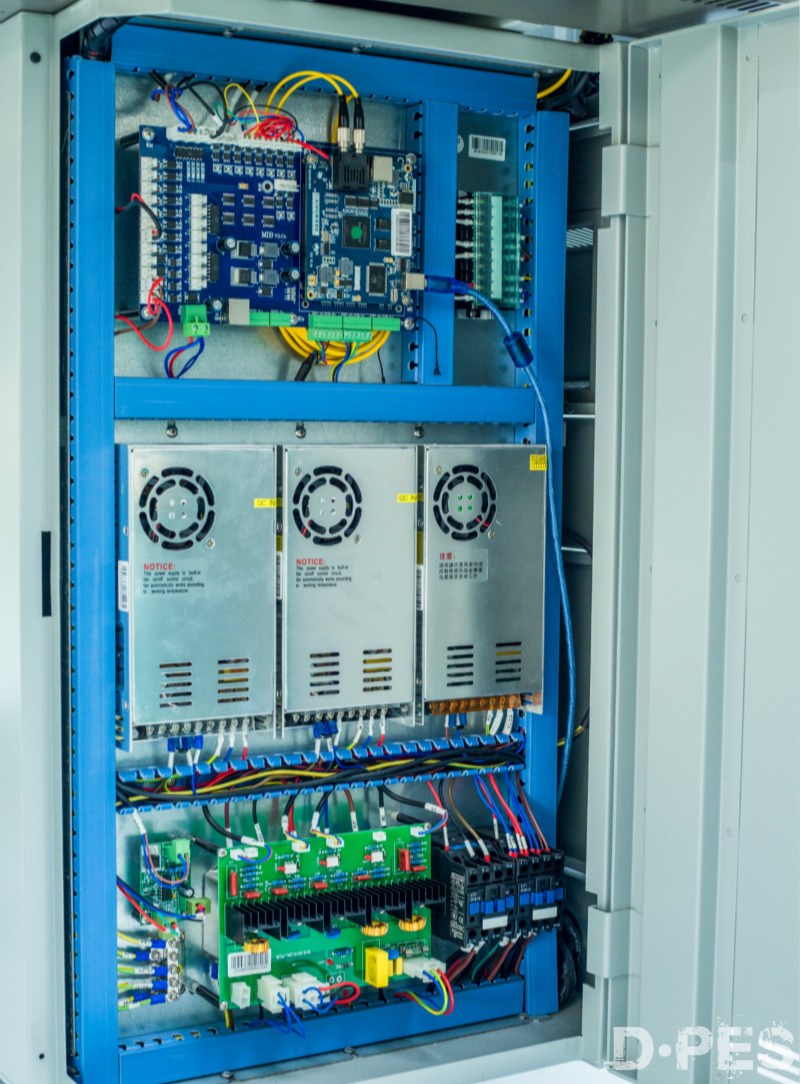

Power&Boards



Photoprint RIP Software

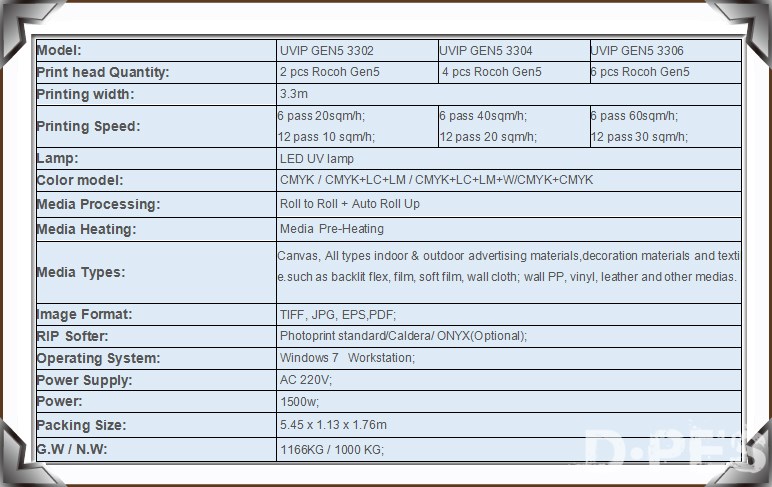

Parameter



Detail Information:

1.Industry print heads----Ricoh Gen5

Manufacturer: Japan Ricoh company

Material: Steel

Nozzle: 4 rows, 320pcs/row, total 1280pcsNozzle width:about 54.00mm

Drop volume:4-7PL

Physical Resolution: 600DPI

Fire Frequency: 30KHz

Using life: 8-10years

Character:

A.High resolution

It owns 600dpi high physics resolution, with few print heads could reach high definition printing performance.

B. One print head with multi color

It has independent ink channel, one print head can reach max 4 color printing.

C. Muti Greyscale

It max could reach 8 degree Greyscale with high color expression ability.

D. Convenient to install and maintenance.

E. Print head self heating function

2. Cold Light LED UV Lamp

Equips with Japan LED lamps. This lamp are different from the traditional mercury lamps.

Compared with normal lamps, LED Lamp has 5 big advantages:

(1) Lower Power consumption (2) Less radiation.  (3) Cool light   (4) Longer Using Life

(5) Safer and more environmental friendly

3. Mechanical structure design

Integral heavy duty mechanical structure, Open style design, easy to operate&maintenance.

Best printing performance on both rigid material and roll to roll materials.

Adjustable carriage height device ensures for thicker material printing.

Through this light box, operators can easily find the printing situation.

Dual Hiwin Linear Rail and Imported Italy Megadyne Industrial Belt.

4. High precision printing panel.

5. Sucking panel

Sucking design under the panel,controlled by the switch according to needs, it can ensure the printing material lay on the printing panel tightly without offsets and can print smoothly, achieves perfect printing performance.

6. Import Servo motor

Imported High Precision Industrial DELTA servo motors for X/Y Axis, supply enough power.

7.Carriage height automatic lifting function

The height of the carriage is adjustable according to material's thickness (Maximum 15cm).

8. Negative Pressure Ink Supply System

Guarantee the stable ink supply during the printing.

9.Double Rail

Ensures the stable movement of the carriage; Heat resistant, oil resistant, wear-resisting and long using life Italy megadyne belt and so on high quality spare parts ensure the whole high quality and high performance of the printer.

10.Special Design for soft film printing

Nowadays more and more soft film used in signs and advertisement, especially house floor decoration. Market has a huge demand of UV ink printed soft film. But UV flatbed or solvent printers can not meet the requirements, both in printing quantity and quality. This UV printer is specialized in printing soft film.


Applications


EXHIBITION
